Helping To Eliminate Frequencies and Vibrations
Thick Rubber Barrier Sheeting - Acoustical Barrier
Thick Rubber Sheeting On The Walls, Floor And Ceiling
 |

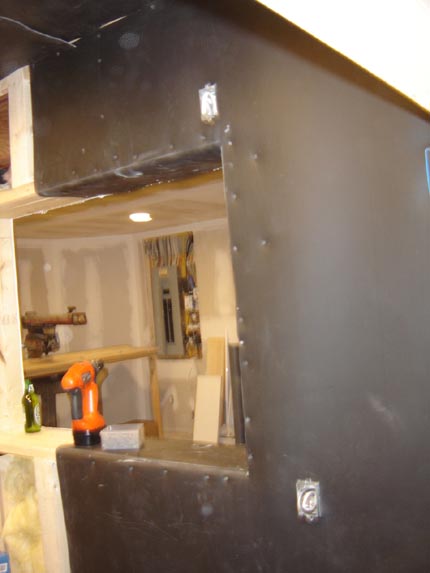

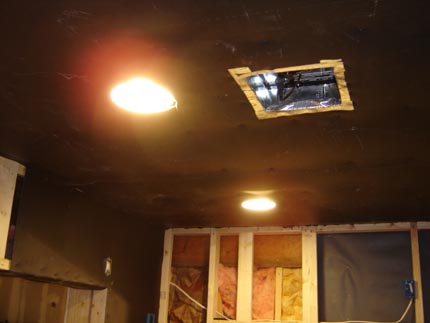

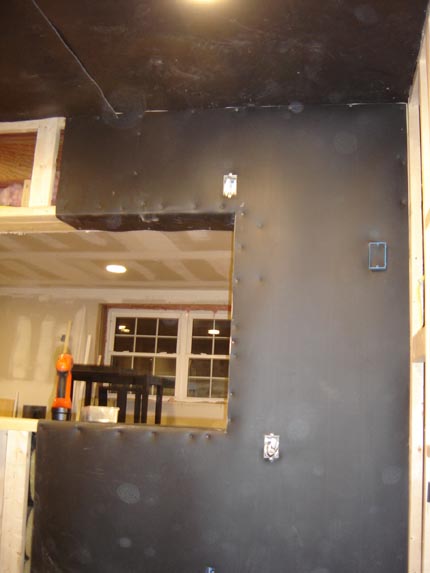

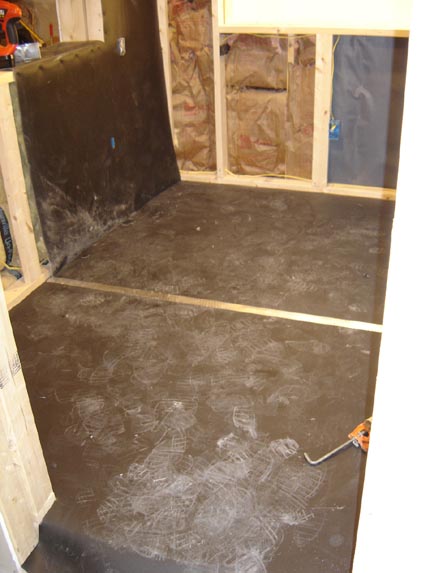

The entire inside of the iso-booth was covered by professional acoustical audio barrier, under the sheets of drywall. This acoustic (or audio) barrier is 2 pounds per square foot and is specifically designed to GREATLY reduce the transmission of sound or STDs (see technical spec at bottom).
After application of the audio barrier, a professional, studio grade, acoustically sealant was applied to ALL the seems, as well as, joints between walls, ceiling and floor to ensure it is soundproof (essentially, "air tight"). |
 |
 |
 |
TECHNICAL DATA:
PROPERTIES
| Physical Property |
Value |
Test Standard |
| Thickness |
Approx. ¼" |
n/a |
| Surface Mass |
2.0 lbs/ft² |
n/a |
| Density |
96 lbs/ft³ |
n/a |
| Elongation |
120% |
ASTM D-412 |
| Tensile Strength |
407 PSI |
ASTM D-412 |
| Tear Strength |
77 lbs/ 1" |
ASTM D-624 |
| Temperature Range |
-40ºF to 255ºF |
n/a |
| Hardness |
90 Durometer, Shore |
A2 ASTM D-2240 |
| Specific Gravity |
1.80 |
ASTM D-798 |
| Stiffness |
19.60 mega pascal |
ASTM 749 |
| Flammability |
Meets |
UL 94 HF-1 |
SOUND TRANSMISSION LOSS
| Freq. Hz |
125 |
250 |
500 |
1000 |
2000 |
4000 |
STC |
| (dB) |
19 |
19 |
27 |
34 |
38 |
43 |
32 |
| |
|
|
|
|
|
|
|
|
